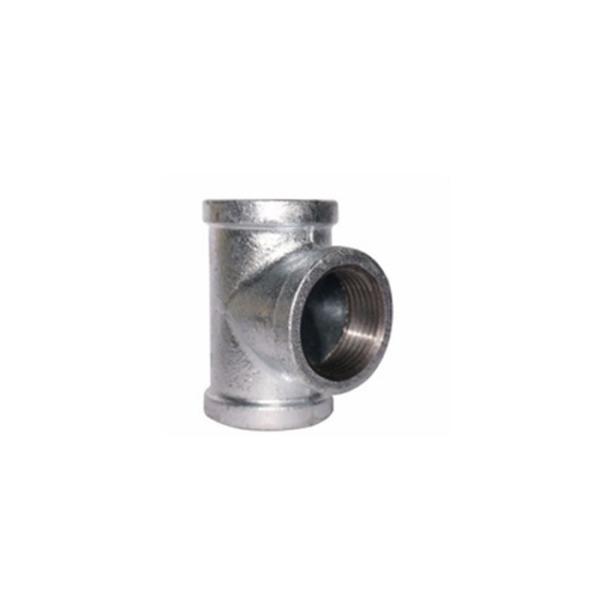

High Tensile Strength Malleable Iron Tee BSPT Female Tee Fitting For Water Pipe

Name: High Tensile Strength Malleable Iron Tee BSPT Female Tee Fitting For Water Pipe
Brand: leyon
Price: 1 USD

Wholesale High Tensile Strength Malleable Iron Tee BSPT Female Tee Fitting For Water Pipe from china suppliers

Brand Name : leyon

Model Number : BSPT female tee

Certification : FM/UL

Place of Origin : China

MOQ : 100piece

Price : Negotiable

Payment Terms : Western Union, L/C, T/T, D/P, D/A, MoneyGram

Supply Ability : 10000piece/week

Delivery Time : 25-35days

Packaging Details : 200piece/carton

Surface treatment : Hot dipped galvanized and cold galvanized

Treaded : ISO7/1, DIN2999,NPT

Standard : 11/4 inch BSPT female tee

Material : Iron

Size : 11/4 inch

Dimensions : 45 mm

Contact Now

Excel of BSPT female tee

Material	Malleable iron
Standard	Thread: ISO 7/1
Dimension	ISO 49, DIN 2950,EN10242
Chemical property	(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property	Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure	2.5Mpa
Working pressure	1.6Mpa
Type	Beaded with ribs or banded with ribs
	Beaded without ribs or banded without ribs
	Round/square
Surface	Galvanized/ no galvanized
Color	White/black
Model	Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection	Male, Female
Shape	Equal, Reducing
Certificate	BSI,ANAB,ISO9001,FM,UL
Application	Suitable for pipe connect of steam, air, gas, oil and so on
Application	Buyer’s drawings or designs are available
Package	Cartons without pallet
	Cartons with pallet
	Double woven bags
	Or as buyer’s requirements
Delivery details	According to the quantities and specifications of each order
Delivery details	Normal delivery time is from 30 to 45 days after receiving the deposit

malleable iron tensile strength BSPT female tee for water and gas

In the past, many foundries produced malleable iron castings, however, with the development of ductile iron, most of malleable iron casting parts could be replaced by ductile iron. So, only few iron foundries in China are still producing this material.

1. What's kind of analyzer to use ?

We use spectroscopic analyzer to detect the composition of the sample material.

2. How they check the material's quality ?

Cast iorn pipe fittings materials’ quality are checked by spectrometer.

3. How Control the annealing process ?

Control the annealing process strictly,enhance the physical properties of the materials

4. Which kind of test ?

Make sure there is no leakage ,Every Malleable iron Tee must succeed in air tightness test.

5. What's the size range ?

Tee’s size ranging from 1/8 inch to 8 inch

6. Which kind of technology use for BSPT female tee?

For ensuring to control malleable iron tee pipe fittings, we use the most advanced metallurgical and

processing technology.

7.How about the quality ?

Good toughness with long working life.

Attribute definition list :

· Material: malleable iron

· Technics: casing

· Type: Malleable Iron Tee

· Connection:male&female

· size:1/8"-8"

· Standard: ANSI, BS, DIN

· Packing: wooden cases or as customers' demands

· surfacetreatment:painting galvaized or as customers' demands

Size	Inch	3x3/4	3x1	3x11/4	3x11/2	3x2	3x21/2	4x1	4x11/4
Size	mm	80x20	80x25	80x32	80x40	80x50	80x65	100x25	100x32
Dim. (mm)	A	52	51	55	58	64	72	56	60
Size	Inch	4x11/2	4x2	4x21/2	4x3
Size	mm	100x40	100x50	100x65	100x80
Dim. (mm)	A	61	70	78	84
