Brand Name : leyon
Model Number : Galvanizated reducing Elbows
Certification : FM/UL
Place of Origin : China
MOQ : 100piece
Price : Negotiable
Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
Supply Ability : 10000piece/week
Delivery Time : 25-35days
Packaging Details : 200piece/carton
Dimension : A: 36mm B: 41mm
Specification : Elbow, socket, Tee, Union, Bushing, Plug
Usage : Oil Gas Water Industrial
OEM : Galvanizated Equal Elbows
thread : NPT
certificate : BSI, ISO9001,FM,UL
Working pressure : 1.6Mpa
Interpolation table of Galvanizated Reducing Elbows
Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 |
mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 | |
Dim. (mm) | A | 19 | 21 | 25 | 28 | 33 | 38 | 45 | 50 |
Size | Inch | 2 | 21/2 | 3 | 4 | 5 | 6 | ||
mm | 50 | 65 | 80 | 100 | 125 | 150 | |||
Dim. (mm) | A | 50 | 69 | 78 | 96 | 115 | 1301 |
Size | Inch | 3/8X1/4 | 1/2x1/4 | 1/2x3/8 | 3/4x3/8 | 3/4x1/2 |
mm | 10X8 | 15X8 | 15X10 | 20X10 | 20X15 | |
Dim. (mm) | A | 23 | 26 | 26 | 28 | 30 |
B | 23 | 26 | 26 | 28 | 31 | |
Size | Inch | 1x1/2 | 1x3/4 | 11/4x1/2 | 11/4x3/4 | 11/4x1 |
mm | 25X15 | 25X20 | 32X15 | 32X20 | 32x25 | |
Dim. (mm) | A | 32 | 35 | 34 | 36 | 40 |
B | 34 | 36 | 38 | 41 | 42 |
About Galvanizated Reducing Elbows
Thread processed is exactly based on ASME EN BS DIN standard requirements, so that make every thread can be matched easily.
The galvanizated reducing elbows have outlets ranging from 1/8” through 8”.
Good toughness with long working life.
Size | Inch | 11/2X1/2 | 11/2x3/4 | 11/2x1 | 11/2x11/4 | 2x1/2 |
mm | 40X15 | 15X8 | 40X25 | 40X32 | 50X15 | |
Dim. (mm) | A | 36 | 39 | 42 | 46 | 38 |
B | 42 | 44 | 46 | 28 | 48 | |
Size | Inch | 2x3/4 | 2x1 | 2x11/4 | 2x11/2 | 21/2x1 |
mm | 50X20 | 50X25 | 50X32 | 50X40 | 65x25 | |
Dim. (mm) | A | 40 | 44 | 56 | 52 | 56 |
B | 50 | 52 | 58 | 55 | 63 |
Size | Inch | 21/2X11/2 | 3x21/2 | 21/2x2 | 3x11/2 |
mm | 65X40 | 80X65 | 65X50 | 80X40 | |
Dim. (mm) | A | 64 | 82 | 61 | 58 |
B | 69 | 85 | 66 | 72 | |
Size | Inch | 3x2 | 4x21/2 | 4X3 | |
mm | 80X50 | 100X65 | 100X80 | ||
Dim. (mm) | A | 73 | 78 | 84 | |
B | 78 | 90 | 92 |
Malleable cast irons are a class of cast irons with mechanical strength properties that are intermediate to those of gray or ductile cast irons. The microstructure provides it properties that make malleable cast irons ideal for applications where toughness and machinability are required, and for components that are required to have some ductility or be malleable so that they can be bent or flexed into position without cracking.
![]() |

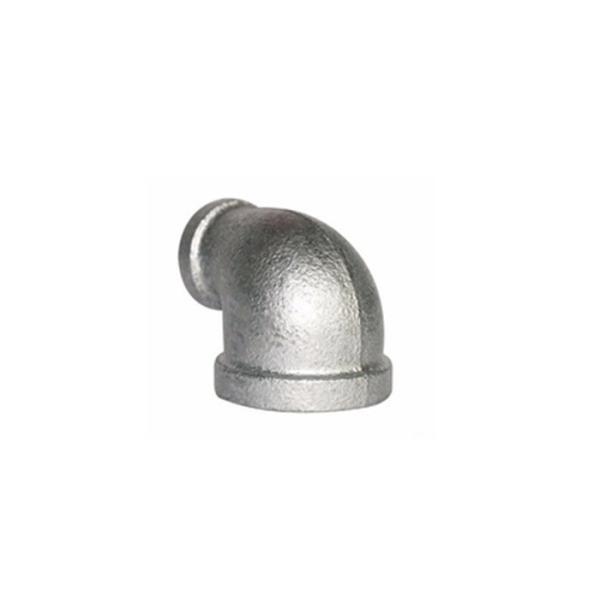

ASTM Standard 90 JIC Hydraulic Adapter Galvanizated Reducing Elbows Images |
